Solar Mounts

GROUND MOUNTS

65 Watt Single OR Dual Solar Panel Ground Mount Setup. Single panel is pictured below; a second panel can be mounted below the first. There is (a limited) angle adjustment range.

30 Watt Single or Dual Solar Panel Ground Mount can be setup:

A) in the configuration pictured above for 65W panels OR

B) in the configuration pictured below. Either one will work.

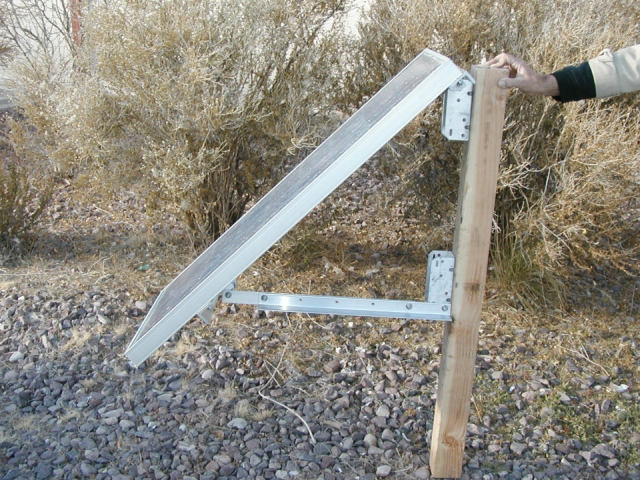

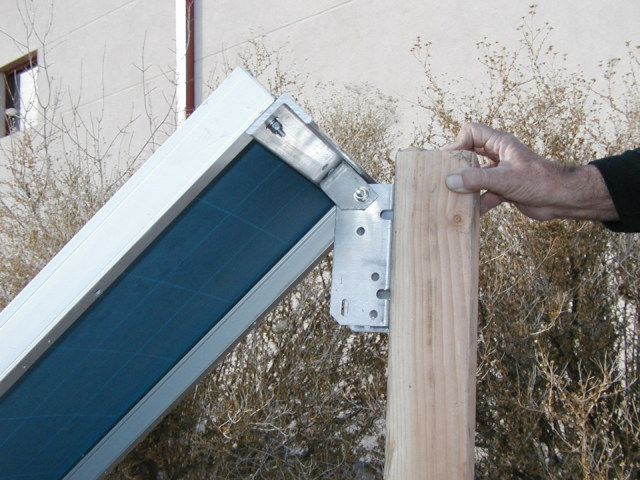

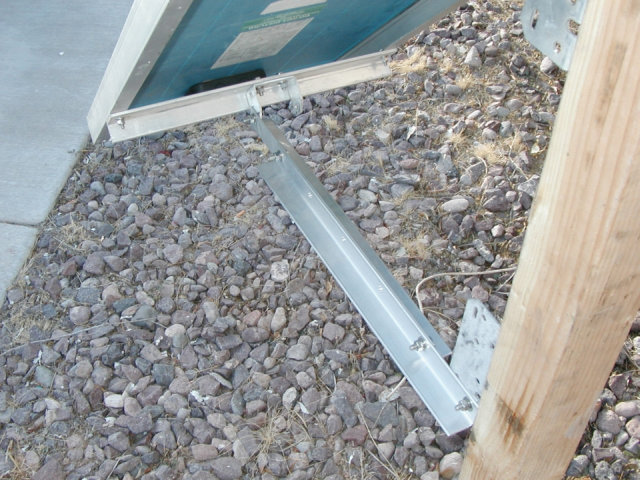

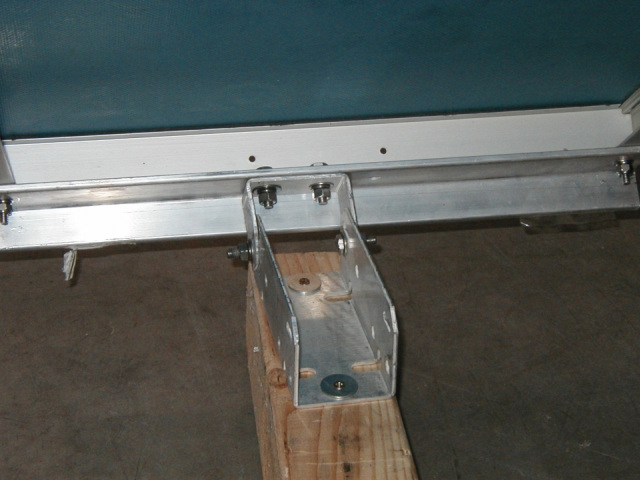

POLE MOUNTS

Pole Mounts are useful if you need the panels higher than expected snow depths, for example.

Poles and U-Bolts are not provided by EPIC. The PI's will have to buy the vertical element, e.g. pole, or 4x4. Depending on conditions you may also need guy wires.
