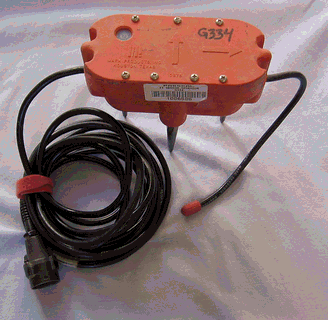

Sercel L-28-3D High Frequency Sensor

Salient Features:

•  This 3-channel sensor has a frequency of 4.5Hz, is critically damped at .707 and has a sensitivity of 30.4 V/m/s.
•  Used for (but not limited to) active source (land and off-shore excitations), glacial movements, local earthquake and aftershock studies.

Manufacturer Documents

•  http://www.sercel.com/products/Lists/ProductSpecification/Geophones_brochure_Sercel_EN.pdf

Download the Brochure to obtain information about the L-28 geophones.

EPIC Documents:

•  Connector wiring information here

Installation & Troubleshooting Documents:

•  L-28 Orientation and Installation Tips here
• One-pager field sheet

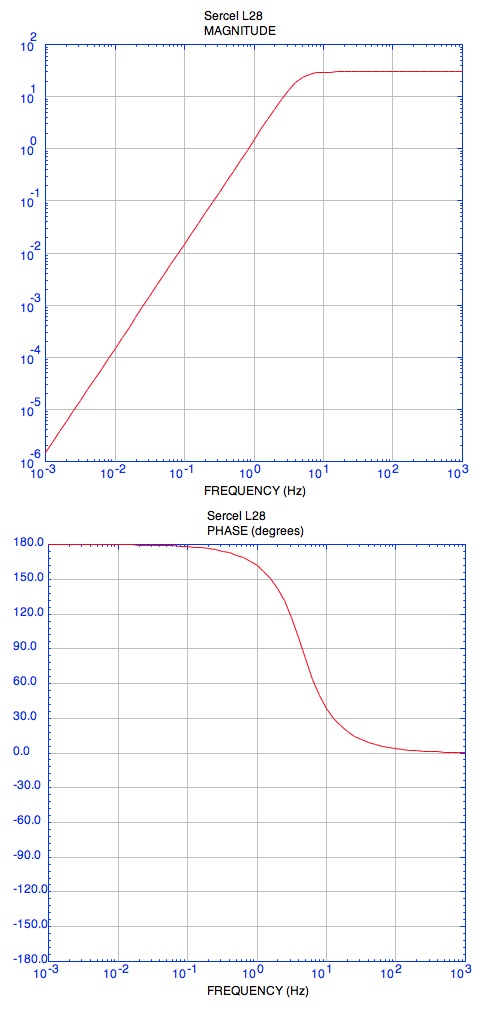

Response Characteristics:

Other Documents:

•  EPIC Sensor Comparison Chart
•  Policy for the use of EPIC Instruments
