Station Enclosure Drawings



Large Enclosure:  Insulated Hardigg AL3434-2807

  • External dimensions:  37" x 37" x 37"
  • Internal dimensions:  24" x 24" x 21"
  • 2" thick vacuum insulation panel (VIP) sub-enclosure
  • Protective polypropylene barrier between VIPs and electronics
  • Integrated cable harness with external bulkhead connectors
  • Year round operation with rechargeable AGM batteries



Detailed Drawings





Small Enclosure:  Insulated Hardigg AL3434-2807

  • External dimensions:  27" x 27" x 27"
  • Internal dimensions:  20" x 20" x 18"
  • 2" thick vacuum insulation panel (VIP) sub-enclosure
  • Protective fiberglass barrier between VIPs and electronics
  • Integrated cable harness with external bulkhead connectors
  • Year round operation with primary batteries



Detailed Drawings

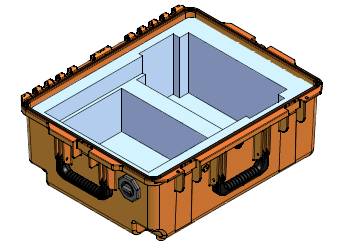

Quick Deploy Station (QDS) Enclosure :  MEVO Box

  • Hardigg Stormcase iM2720
  • External dimensions:  25" x 20" x 11"
  • Internal dimensions:  16" x 13" x 7"
  • Die cut internal packaging
  • Feed-through port fits variety of sensor cables
  • Integrated charge controller and bulkhead connector for solar panel
  • Summer operation with Quick Deploy 10 Watt Solar and AGM battery



Detailed Drawings
