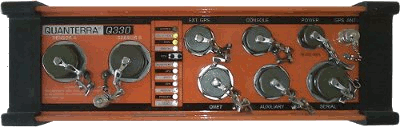

Quanterra Q330

The Q330 is a 3 or 6 channel high resolution datalogger. It is low power and highly configurable for a wide range of applications and sensors. The Q330 is housed in a sealed aluminum enclosure which makes it highly resistant to the environment. Telemetry is a main focus of the Q330, but it also has a robust on-site data storage system which uses external Balers. This makes it easy to swap out the data storage on-site for when servicing doesn't allow an extended visit. The Q330 can write data to four different receiving systems simultaneously. It also has built-in sensor controls, an automatic mass recentering feature, and calibration functions. The Q330 is programmed with a Windows program called Willard, it can also be controlled by a PalmOS program for when working in the field.

Features:

• 3 or 6 channel, 24 bit ADC
• Physical size: 14" x 4" x 6"
• Power source: 10-16V, ~0.6W
• Sample rate: 1 to 200 sps
• Storage capacity: Baler dependent, up to 32GB
