 Solar Panel Mount Drawings

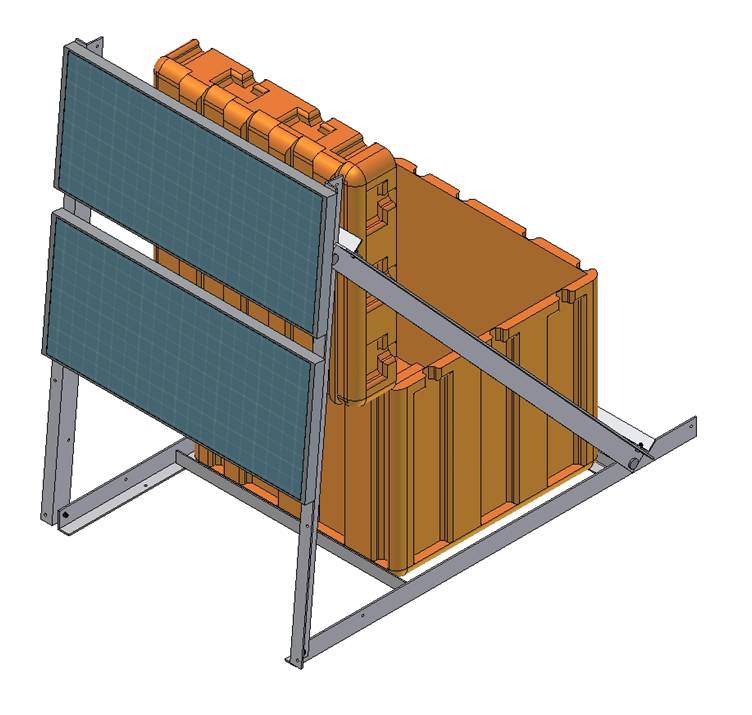

Angle Mount: 2x 80 Watt Solar Panels

  • 7' x 4' x 6' 6" deployed
  • 7' x 4' x 6" folded for transport
  • 130 lbs complete
  • Rock or snow deployment



Detailed Drawings

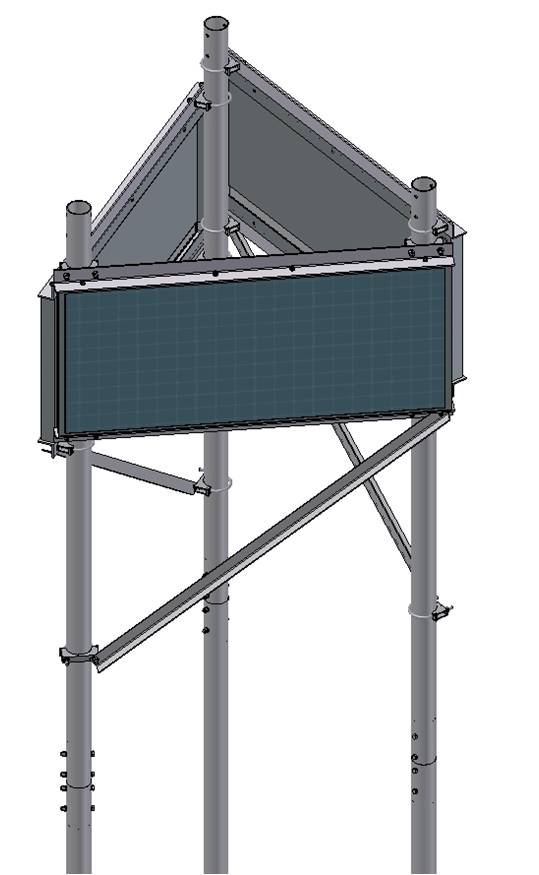

Tri-Panel Mount: 3x 80 Watt Solar Panels

  • 7' x 4' x 11' deployed
  • 7' x 4' x 10" folded for transport
  • 150 lbs complete
  • Snow deployment



Detailed Drawings







Single Mast 3x 20 Watt Solar Panel Mount

  • 2' x 2' x 7' deployed
  • Transported completely assembled
  • 50 lbs complete
  • Snow deployment



Detailed Drawings

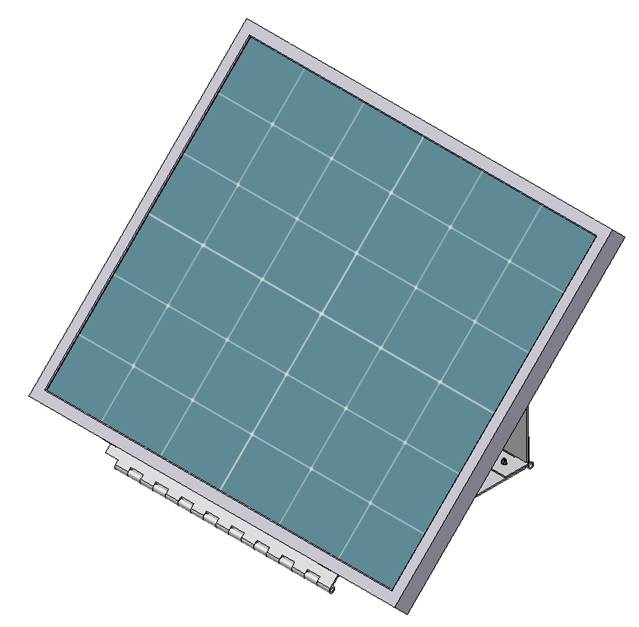

Quick Deploy 10 Watt Solar Panel Mount

  • 14" x 12" x 8" deployed
  • 14" x 12" x 1" folded for transport
  • Quarter turn captive fasteners for quick assembly
  • 5 lbs
  • Summer only deployments
  • Mounts to lid of QDS (MEVO Box)



Detailed Drawings
